FRP Reinforcing Pultruded Profiles Epoxy Fiberglass Flat Bar

Time：2022-08-11

FRP Flat sheet can be manufactured by pultrusion technique,SMC,continous forming and hand lay-up method.Different technique has different advantage &disvantage. Pls see below form.

Fiberglass Flat Sheet Introduction

FRP Flat sheet can be manufactured by pultrusion technique,SMC,continous forming and hand lay-up method.
Different technique has different advantage &disvantage. Pls see below form.

Item	Pultrusion	SMC	Continuous Forming	Hand Lay-Up
Length	No Length Limit,as long as the container can fit.	≤3600mm	No Length limit,it can be rolled	Customized
Thickness	2-10mm	2-100mm	0.8-3.5mm	Customized
Width	≤2400mm	≤2400	≤2400mm	Customized
Mould fee	Yes	Yes	NO	Yes
Production Efficiency	C	B	A	D
Application	Floor,Bridge Panel,etc	Electric Cabinet ,etc	window,truck panel skin,etc	Bridge and Wall Decorative ,etc

Main Features

1) Skillful manufacturing
2) Modern design
3) Corrosion resistance
4) Light weight
5) High intensity
6) Aging resistance
7) Excellent dimension stability
8) Long service life
9) Smooth surface
10) Good flexibility
11) Manufactured using synthetic resin and reinforced with glass fiber.

Properties

1. Excellent specific modulus and strength.
2. Good insulation properties.
3. Good water resistance and good fire resistance.
It is widely used in marine, wind energy, sports, railway and aerospace industries.

Tensile Modulus(Mpa)	75	95	130	175	250	320
Compressive Strength(Mpa)	0.9	1.4	2.0	3.0	4.8	6.2
Compressive Modulus(Mpa)	72	90	135	170	240	300
Shear Strength(Mpa)	0.76	1.15	1.6	2.2	3.5	4.5
Shear Mpdulus(Mpa)	20	27	35	50	85	104
Shear Strain(%)	20	30	40	40	40	40

Technical data

Item	P60	P80	P100	P130	P200	P250
Density ( kg/m3)	60	80	100	130	200	250
Tensile Strength(Mpa)	1.8	2.5	3.5	4.8	7.1	9.2
Tensile Modulus(Mpa)	75	95	130	175	250	320
Compressive Strength(Mpa)	0.9	1.4	2.0	3.0	4.8	6.2
Compressive Modulus(Mpa)	72	90	135	170	240	300
Shear Strength(Mpa)	0.76	1.15	1.6	2.2	3.5	4.5
Shear Mpdulus(Mpa)	20	27	35	50	85	104
Shear Strain(%)	20	30	40	40	40	40

Applications

Wind energy: rotor blades, nacelles
Marine: hulls, decks, bulkheads, superstructures, interiors.

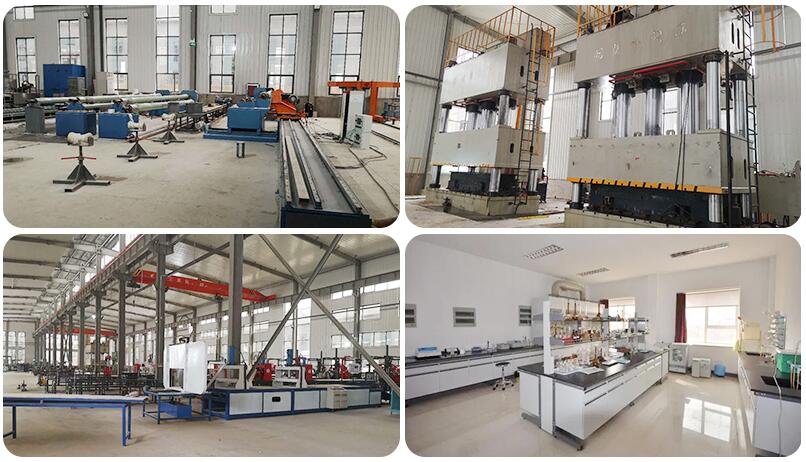

Our company is professional in producing FRP profiles, which have been exported to many abroad countries. Feel free to contact us for more information.
